LLA 01

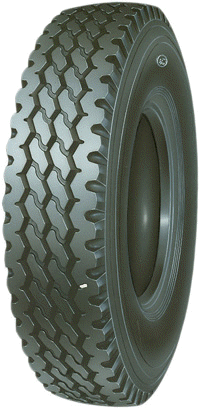

Product Photo

Tyre size Ply Rating Speed Level Standand Rim Approved Rim Max. Load(kg) Inflation Pressure(kpa) Inflated Section Width

　

 Overrall Diameter, inflated Vale Standard No
9.00R20 14 K 7.0 7.5 7.50V 140/137 740/810 255 1022 Z1-01-6
9.00R20 16 K 7.0 7.5 7.50V 144/139 840/910 255 1022 Z1-01-6
9.00R20 18 K 7.0 7.5 7.50V 146/141 930/990 255 1022 z1-01-6
10.00R20 16 K 7.5 8.0 7.50V 146/143 770/840 272 1053 Z1-01-7 　
10.00R20 18 K 7.5 8.0 7.50 149/145 860/930 272 1053 Z1-01-7 　
11.00R20 16 K 8.0 8.5 8.0V 149/145 770/840 285 1088 Z1-01-8 　
11.00R20 18 K 8.0 8.5 8.0V 151/147 860/930 285 1088 Z1-01-8
