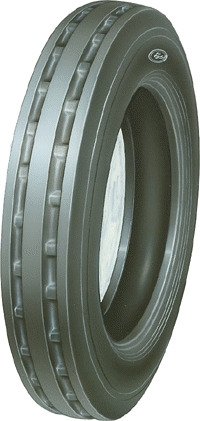

LL30
| tyre size | ply rating | speed level | standard rim | approved rim | max load(kg) | inflation pressure(kpa) | inflated section width(mm) | overall diameter inflated(mm) | valve | standard no |
| 6.50-20 | 5.00F | 4.50E | 865 | 420 | 180 | 860 | Z1-02-1 | Q/YLT001-1999 | ||
| 6.00-16 | 4.50E | 5.00F | 490 | 250 | 165 | 640 | Z1-02-2 | GBT1192-1999 | ||
| 4.50-16 | 3.00D | 5.00F | 615 | 390 | 122 | 655 | Z1-02-1 | Q/YLT001-1999 | ||
| 4.50-14 | 3.00D | 5.00F | 1000 | 450 | 120 | 602 | Z1-02-1 | Q/YLT001-1999 | ||
| 4.00-16 | 3.00D | 800 1000 | 400 460 | 110 | 640 | Z1-02-1 | Q/YLT001-1999 | |||
| 4.00-16 | 3.00D | 800 1000 | 400 460 | 110 | 640 | Z1-02-1 | Q/YLT001-1999 | |||
| 4.00-12 | 3.00D | 2.50C | 240 | 360 | 110 | 535 | Z1-02-1 | Q/YLT001-1999 |
